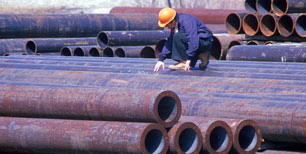

Thick Wall Steel Pipes
Himesh Steel & Alloys has the right grade, size and price to meet your requirements including ASTM/ASME A/SA-106 Grade B/C and API 5L X- 42 thru X -70.
We are manufacturer, exporter & suppliers of Thick Wall Steel Pipes and supply high quality Thick Wall Steel Pipes in both large and small quantities worldwide & offer you the best prices in the market. We have a team of experienced professionals with years of experience in manufacturing.
Content Link:
- • Thick Wall Steel Pipes Specification
- • Thick Wall Steel Pipes Usage
- • Thick Wall Steel Pipes Packaging & Shipping
- • Thick Wall Steel Pipes Price
- • Pressure and Temperature Ratings for Thick Wall Steel Pipes
- • Other Useful Info
- • Our Inventory
Thick Wall Steel Pipes Specification
We are specialist in schedule and non-schedule heavy wall pipe and tubing, Federal Steel inventories multiple specifications, including API (X-grades), ASTM (A106 B/C, A53, A519, A513 Type 5 DOM), and ASME specifications.
Seamless Steel Tubes & Pipes for Mechanical Application, thick wall pipe, seamless tubing
Seamless and Welded Carbon Products
- • Size range: ½” nominal through 60” OD
- • Wall Thickness up through 4” thick & heavier upon request
- • Specifications & Grades:
- A-106 Grade B/C
- SA-106 Grade B/C
- A-333, Grade 1/6
- API 5LB & X-Grades through X-80
- A-53 Grade B
- SA-53 Grade B
- A-519
- A-513 Type 5 (DOM)
- Rolled and Welded A-671 & A67
A-106/SA-106 seamless pipe is one of our most popular products. We carry Schedules STD through XXH and Sch 160.
High Yield Carbon Steel Pipe Specifications & Grades
API5L Seamless – Grades B (X42, X52, X60, X65 and above)
High Yield Carbon Steel Flanges & Fittings
High Yield Butt Weld Fittings: A- 860 or MSS SP75
WPHY42 (Y52, Y56, Y60, Y65)
High Yield Flanges: A-694 (F42, F52, F56, F60, F-65)
Thick Wall Steel Pipes Usage
Mechanical pipe, structural pipe, automobile axle, hydraulic prop tube, boiler tube, tubes for conveyance of fluid, tubes for hydraulic pillar service, tubes for structures of pipelines, vessels and equipment
Thick Wall Steel Pipes Packaging & Shipping
Packed Thick Wall Steel Pipes
Packed Thick Wall Steel Pipes
Plastic closes both ends, Hexagonal bundles maximum 2.000 kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and IN in sackcloth with several steel strips, Plastic caps.
Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested. We can also offer customized packaging for Thick Wall Steel Pipes as per customer's requirement.
Overseas Packaging
Export packaging is geared towards the protection, handling and transport of Thick Wall Steel Pipes by air or sea freight and, as such, shares many characteristics with export and transport packaging. Utmost care must also be taken to make overseas packaging suitable for long periods of storage. It is important for overseas packaging to be designed with ease of handling in mind, so as to ensure Thick Wall Steel Pipes is treated with the utmost care at all times.
Thick Wall Steel Pipes Price
Large Diameter And Thick Wall Carbon Steel Pipe
FOB Price: US $650-800 / Ton
350X500mm Thick Wall Rectangular Carbon Steel Pipe
FOB Price: US $600-800 / Ton
Thick wall seamless carbon steel pipe
FOB Price: US $600-1000 / Ton
thick wall carbon steel pipe of ASTM A53 Gr.B boiler pipe
FOB Price: US $600-850 / Ton
API 5L GR.B X52,60,70 schedule40 SMLS thick wall carbon steel pipe
FOB Price: US $400-700 / Metric Ton
thick wall carbon steel pipe OD24' 610mm SCH40 sch80
FOB Price: US $750-850 / Metric Ton
LSAW large diameter thick wall carbon steel pipe/tube
FOB Price: US $720-750 / Ton
Hot Rolled ASTM 1045 thick wall carbon steel pipes
FOB Price: US $750-890 / Metric Ton
Pressure and Temperature Ratings for Thick Wall Steel Pipes
Maximum allowable pressure and temperature ratings for petroleum refinery piping and chemical plant piping systems grade B with plane ends to ANSI/ASME B31.3 Process Piping.
Maximum Allowable Pressure (kPa) |
|||||||||||
| Nominal Size (mm) |
Schedule no. | Wall Thickness (mm) |
Temperature (oC) | ||||||||
| -29 - 38 | 205 | 260 | 350 | 370 | 400 | 4301) | 450 | ||||
| Maximum Allowable Stress (kPa) | |||||||||||
| 137800 | 137800 | 130221 | 117130 | 115752 | 89570 | 74412 | 59943 | ||||
| 15 | STD | 40 | 2.77 | 34416 | 34416 | 32528 | 29255 | 28910 | 22372 | 18589 | 14972 |
| XS | 80 | 3.73 | 48092 | 48092 | 45466 | 40878 | 40396 | 31260 | 25969 | 20918 | |
| 160 | 4.78 | 62830 | 62830 | 59378 | 53404 | 52777 | 40837 | 33929 | 27333 | ||
| XXS | 7.47 | 98245 | 98245 | 92836 | 83507 | 82522 | 63857 | 53053 | 42739 | ||
| 20 | STD | 40 | 2.87 | 28070 | 28070 | 26526 | 23860 | 23578 | 18245 | 15158 | 12209 |
| XS | 80 | 3.91 | 39418 | 39418 | 37247 | 33506 | 33106 | 25617 | 21283 | 17142 | |
| 160 | 5.56 | 58152 | 58152 | 54955 | 49429 | 48843 | 37799 | 31398 | 25293 | ||
| XXS | 7.82 | 83107 | 83107 | 78539 | 70643 | 69809 | 54024 | 44881 | 36152 | ||
| 25 | STD | 40 | 3.38 | 26251 | 26251 | 24804 | 22310 | 22048 | 17060 | 14173 | 11417 |
| XS | 80 | 4.55 | 36283 | 36283 | 34285 | 30862 | 30474 | 23584 | 19595 | 15785 | |
| 160 | 6.35 | 52481 | 52481 | 49594 | 44606 | 44082 | 34112 | 28339 | 22827 | ||
| XXS | 9.09 | 77030 | 77030 | 72793 | 65476 | 64704 | 50070 | 41595 | 33506 | ||
| 32 | STD | 40 | 3.56 | 21614 | 21614 | 20421 | 18369 | 18155 | 14049 | 11672 | 9404 |
| XS | 80 | 4.85 | 30178 | 30178 | 28518 | 25651 | 25348 | 19616 | 16295 | 13125 | |
| 160 | 6.35 | 40596 | 40596 | 38364 | 34505 | 34099 | 26389 | 21924 | 17659 | ||
| XXS | 9.70 | 64601 | 64601 | 61045 | 54906 | 54266 | 41988 | 34884 | 28097 | ||
| 40 | STD | 40 | 3.68 | 19444 | 19444 | 18375 | 16529 | 16329 | 12636 | 10550 | 8454 |
| XS | 80 | 5.08 | 27402 | 27402 | 25900 | 23295 | 23019 | 17811 | 14800 | 11919 | |
| 160 | 7.14 | 39738 | 39738 | 37599 | 33816 | 33416 | 25858 | 21483 | 17308 | ||
| XXS | 10.16 | 58779 | 58799 | 55547 | 49966 | 49374 | 38205 | 31742 | 25569 | ||
| 50 | STD | 40 | 3.91 | 16378 | 16378 | 15468 | 13925 | 13759 | 10645 | 8847 | 7124 |
| XS | 80 | 5.54 | 23653 | 23653 | 22351 | 20105 | 19871 | 15378 | 12774 | 10287 | |
| 160 | 8.74 | 38866 | 38866 | 36731 | 33037 | 32652 | 25266 | 20987 | 16908 | ||
| XXS | 11.07 | 50793 | 50793 | 48003 | 43173 | 42670 | 33017 | 27429 | 22096 | ||
| 65 | STD | 40 | 5.16 | 17914 | 17914 | 16929 | 15227 | 15048 | 11644 | 9674 | 7793 |
| XS | 80 | 7.01 | 24818 | 24818 | 23447 | 21097 | 20849 | 16129 | 13401 | 10797 | |
| 160 | 9.53 | 34615 | 34615 | 32714 | 29420 | 29076 | 22503 | 18693 | 15055 | ||
| XXS | 14.02 | 53081 | 53081 | 50159 | 45116 | 44585 | 34498 | 28662 | 23088 | ||
| 80 | STD | 40 | 5.49 | 15558 | 15558 | 14969 | 13222 | 13063 | 10108 | 8399 | 6766 |
| XS | 80 | 7.62 | 21986 | 21968 | 20780 | 18693 | 18472 | 14290 | 11871 | 9563 | |
| 160 | 11.13 | 33079 | 33079 | 31253 | 28111 | 27780 | 21497 | 17859 | 14386 | ||
| XXS | 15.24 | 46976 | 46976 | 44392 | 39928 | 39459 | 30536 | 25369 | 20436 | ||
| 100 | STD | 40 | 6.02 | 13187 | 13187 | 12464 | 11210 | 11079 | 8571 | 7124 | 5739 |
| XS | 80 | 8.56 | 19058 | 19058 | 18010 | 16198 | 16012 | 12388 | 12094 | 8289 | |
| 120 | 11.13 | 25190 | 25190 | 23805 | 21407 | 21159 | 16371 | 13601 | 10995 | ||
| 160 | 13.49 | 31019 | 31019 | 29310 | 26368 | 26058 | 20160 | 16750 | 13208 | ||
| XXS | 17.12 | 40348 | 40348 | 38129 | 34298 | 33892 | 26230 | 21786 | 17549 | ||
| 125 | STD | 40 | 6.55 | 11561 | 11561 | 10921 | 9825 | 9708 | 7510 | 6243 | 5038 |
| XS | 80 | 9.53 | 17060 | 17060 | 16122 | 14503 | 14331 | 11093 | 9212 | 7421 | |
| 120 | 12.70 | 23130 | 23130 | 21855 | 19657 | 19430 | 15034 | 12492 | 10059 | ||
| 160 | 15.88 | 29407 | 29407 | 27787 | 24997 | 24701 | 19113 | 15881 | 12795 | ||
| XXS | 19.05 | 35897 | 35897 | 33926 | 30516 | 30158 | 23337 | 19388 | 15620 | ||
| 150 | STD | 40 | 7.11 | 10550 | 10550 | 9928 | 8924 | 8819 | 6828 | 5370 | 4568 |
| XS | 80 | 10.97 | 16474 | 16474 | 15571 | 14007 | 13842 | 10707 | 8895 | 7165 | |
| 120 | 14.27 | 21745 | 21745 | 20553 | 18448 | 18265 | 14138 | 11747 | 9460 | ||
| XXS | 160 | 18.26 | 28325 | 28325 | 26768 | 24074 | 23784 | 18410 | 15296 | 12319 | |
| 200 | 20 | 6.35 | 7138 | 7138 | 6745 | 6063 | 5994 | 4637 | 3852 | 3100 | |
| 30 | 7.04 | 7924 | 7924 | 7489 | 6732 | 6656 | 5147 | 4279 | 3445 | ||
| STD | 40 | 8.18 | 9246 | 9246 | 8737 | 7855 | 7765 | 6008 | 4995 | 4024 | |
| 60 | 10.31 | 11741 | 11741 | 11093 | 9977 | 9860 | 7627 | 6339 | 5105 | ||
| XS | 80 | 12.70 | 14572 | 14572 | 13766 | 12388 | 12237 | 9474 | 7868 | 6338 | |
| 100 | 15.09 | 17452 | 17452 | 16488 | 14834 | 14655 | 11341 | 9426 | 7593 | ||
| 120 | 18.26 | 21345 | 21345 | 20174 | 18148 | 17935 | 13876 | 11527 | 9288 | ||
| 140 | 20.62 | 24308 | 24308 | 22971 | 20656 | 20415 | 15799 | 13125 | 10569 | ||
| XXS | 22.23 | 26334 | 26334 | 24877 | 22386 | 22124 | 17115 | 14221 | 11458 | ||
| 160 | 23.01 | 27340 | 27340 | 25838 | 23240 | 22964 | 17769 | 14765 | 11892 | ||
| 250 | 20 | 6.35 | 5698 | 5698 | 5388 | 4844 | 4789 | 3707 | 3080 | 2480 | |
| 30 | 7.8 | 7028 | 7028 | 6642 | 5974 | 5905 | 4568 | 3796 | 3059 | ||
| STD | 40 | 9.27 | 8385 | 8385 | 7923 | 7131 | 7048 | 5450 | 4527 | 3652 | |
| XS | 60 | 12.7 | 11596 | 11596 | 10955 | 9853 | 9736 | 7538 | 6263 | 5043 | |
| 80 | 15.09 | 13863 | 13863 | 13098 | 11781 | 11644 | 9012 | 7483 | 6028 | ||
| 100 | 18.26 | 16922 | 16922 | 15992 | 14386 | 14214 | 10996 | 9136 | 7359 | ||
| 120 | 21.44 | 20036 | 20036 | 18934 | 17032 | 16825 | 13022 | 10817 | 8716 | ||
| XXS | 140 | 25.4 | 23998 | 23998 | 16474 | 20394 | 20153 | 15599 | 12960 | 10438 | |
| 160 | 28.58 | 27229 | 27229 | 25734 | 23143 | 22875 | 17700 | 14703 | 11844 | ||
| 300 | 20 | 6.35 | 4795 | 4795 | 4534 | 4072 | 4024 | 3114 | 2591 | 2088 | |
| 30 | 8.38 | 6359 | 6359 | 6008 | 5402 | 5540 | 4134 | 3431 | 2763 | ||
| STD | 9.53 | 7241 | 7241 | 6842 | 6153 | 6084 | 4706 | 3914 | 3149 | ||
| 40 | 10.31 | 7854 | 7854 | 7421 | 6676 | 6601 | 5015 | 4244 | 3417 | ||
| XS | 12.70 | 9722 | 9722 | 9191 | 8268 | 8165 | 6318 | 5250 | 4230 | ||
| 60 | 14.27 | 10969 | 10969 | 10363 | 9322 | 9212 | 7131 | 5925 | 4768 | ||
| 80 | 17.48 | 13525 | 13525 | 12850 | 11492 | 11362 | 8792 | 7303 | 5884 | ||
| 100 | 21.44 | 16736 | 16736 | 15819 | 14227 | 14062 | 10879 | 9040 | 7283 | ||
| XXS | 120 | 25.4 | 20015 | 20015 | 18913 | 17011 | 16811 | 13008 | 10804 | 8702 | |
| 140 | 28.58 | 22682 | 22682 | 21435 | 19278 | 19051 | 14744 | 12244 | 9866 | ||
| 160 | 33.32 | 26740 | 26740 | 25273 | 22730 | 22461 | 17383 | 14441 | 11630 | ||
| 350 | 10 | 6.35 | 4361 | 4361 | 4120 | 3707 | 3665 | 2831 | 2356 | 1895 | |
| 20 | 7.92 | 5457 | 5457 | 5161 | 4644 | 4589 | 3548 | 2949 | 2377 | ||
| STD | 30 | 9.53 | 6580 | 6580 | 6222 | 5595 | 5533 | 4279 | 3555 | 2866 | |
| 40 | 11.13 | 7717 | 7717 | 7310 | 6559 | 6477 | 5016 | 4168 | 3355 | ||
| XS | 12.70 | 8833 | 8833 | 8351 | 7510 | 7421 | 5739 | 4768 | 3845 | ||
| 60 | 15.09 | 10541 | 10541 | 9963 | 8964 | 8861 | 6855 | 5691 | 4589 | ||
| 80 | 19.05 | 13421 | 13421 | 12684 | 11410 | 11272 | 9723 | 7248 | 5836 | ||
| 100 | 23.83 | 16949 | 16949 | 16019 | 14407 | 14242 | 11017 | 9157 | 7372 | ||
| 120 | 27.79 | 19933 | 19933 | 18837 | 16943 | 16743 | 12960 | 10762 | 8675 | ||
| 140 | 31.75 | 22964 | 22964 | 21703 | 19519 | 19292 | 14931 | 12402 | 9990 | ||
| 160 | 35.71 | 26051 | 26051 | 24618 | 22144 | 21883 | 16936 | 14069 | 11334 | ||
| 400 | 10 | 6.35 | 3810 | 3810 | 3603 | 3238 | 3197 | 2474 | 2060 | 1660 | |
| 20 | 7.92 | 4768 | 4768 | 4507 | 4051 | 4004 | 3100 | 2577 | 2074 | ||
| STD | 30 | 9.53 | 5746 | 5746 | 5429 | 4885 | 4830 | 3734 | 3100 | 2501 | |
| XS | 40 | 12.70 | 7703 | 7703 | 7283 | 6545 | 6470 | 5009 | 4126 | 3349 | |
| 60 | 16.66 | 10176 | 10176 | 9618 | 8654 | 8550 | 6614 | 5498 | 4430 | ||
| 80 | 21.44 | 13208 | 13208 | 12478 | 11224 | 11093 | 8585 | 7131 | 5746 | ||
| 100 | 26.19 | 16274 | 16274 | 15378 | 13835 | 13670 | 10576 | 8785 | 7076 | ||
| 120 | 30.96 | 19409 | 19409 | 18341 | 16481 | 16302 | 12616 | 10480 | 8440 | ||
| 140 | 36.53 | 23130 | 23130 | 21855 | 19657 | 19430 | 15034 | 12492 | 10059 | ||
| 160 | 40.49 | 25824 | 25824 | 24404 | 21952 | 21697 | 16784 | 13945 | 11238 | ||
| 450 | 10 | 6.35 | 3383 | 3383 | 3197 | 2873 | 2839 | 2198 | 1826 | 1474 | |
| 20 | 7.92 | 4230 | 4230 | 3996 | 3597 | 3555 | 2749 | 2287 | 1839 | ||
| STD | 9.53 | 5099 | 5099 | 4816 | 4334 | 4286 | 3314 | 2756 | 2219 | ||
| XS | 30 | 11.13 | 5967 | 5967 | 5643 | 5071 | 5016 | 3879 | 3225 | 2598 | |
| 12.70 | 6835 | 6835 | 6456 | 5808 | 5739 | 4437 | 3686 | 2969 | |||
| 40 | 14.27 | 7696 | 7696 | 7276 | 6545 | 6463 | 5002 | 4155 | 3349 | ||
| 60 | 19.05 | 10349 | 10349 | 9784 | 8799 | 8695 | 6725 | 5588 | 4499 | ||
| 80 | 23.83 | 13043 | 13043 | 12326 | 11086 | 10955 | 8475 | 7042 | 5670 | ||
| 100 | 29.36 | 16219 | 16219 | 15323 | 13787 | 13622 | 10542 | 8757 | 7055 | ||
| 120 | 34.93 | 19464 | 19464 | 18389 | 16543 | 16350 | 12650 | 10507 | 8468 | ||
| 140 | 39.67 | 22282 | 22282 | 21056 | 18941 | 18713 | 11483 | 12030 | 9694 | ||
| 160 | 45.24 | 25638 | 25638 | 24225 | 21793 | 21531 | 16660 | 13842 | 11155 | ||
| 500 | 10 | 6.35 | 3038 | 3038 | 2873 | 2574 | 2556 | 1977 | 1640 | 1323 | |
| STD | 20 | 9.53 | 4582 | 4582 | 4327 | 3893 | 3852 | 2976 | 2474 | 1991 | |
| XS | 30 | 12.70 | 6139 | 6139 | 5801 | 5216 | 5154 | 3989 | 3314 | 2666 | |
| 40 | 15.09 | 7317 | 7317 | 6911 | 6215 | 6146 | 4754 | 3948 | 3183 | ||
| 60 | 20.62 | 10080 | 10080 | 9522 | 8564 | 8468 | 6552 | 5443 | 4382 | ||
| 80 | 26.19 | 12898 | 12898 | 12188 | 10962 | 10831 | 8385 | 6966 | 5608 | ||
| 100 | 32.54 | 16171 | 16171 | 15287 | 13746 | 13580 | 10514 | 8730 | 7035 | ||
| 120 | 38.10 | 19085 | 19085 | 18037 | 16226 | 16033 | 12409 | 10307 | 8302 | ||
| 140 | 44.45 | 22475 | 22475 | 21242 | 19106 | 18879 | 14614 | 12140 | 9777 | ||
| 160 | 50.01 | 25450 | 25450 | 24094 | 21675 | 21421 | 16577 | 13766 | 11093 | ||
| 600 | 10 | 6.35 | 2529 | 2529 | 2391 | 2150 | 2129 | 1647 | 1364 | 1102 | |
| STD | 20 | 9.53 | 3810 | 3810 | 3603 | 3238 | 3197 | 2474 | 2060 | 1660 | |
| XS | 12.70 | 5097 | 5097 | 4816 | 4334 | 4286 | 3314 | 2756 | 2219 | ||
| 30 | 14.27 | 5739 | 5739 | 5423 | 4878 | 4823 | 3734 | 3100 | 2494 | ||
| 40 | 17.48 | 7055 | 7055 | 6670 | 5994 | 5925 | 4589 | 3810 | 3066 | ||
| 60 | 24.61 | 10018 | 10018 | 9467 | 8516 | 8420 | 6511 | 5409 | 4361 | ||
| 80 | 30.96 | 12691 | 12691 | 12002 | 10783 | 10659 | 8254 | 6856 | 5519 | ||
| 100 | 38.89 | 16102 | 16102 | 15220 | 13690 | 10528 | 10466 | 8695 | 7007 | ||
| 120 | 46.02 | 19223 | 19223 | 18168 | 16336 | 16150 | 12491 | 10383 | 8364 | ||
| 140 | 52.37 | 22048 | 22048 | 20835 | 18741 | 18520 | 14331 | 11906 | 9591 | ||
| 160 | 59.54 | 25279 | 25279 | 23888 | 21489 | 21235 | 16433 | 13649 | 10996 | ||
- 1 Pa = 10-6 N/mm2 = 10-5 bar = 0.1020 kp/m2 = 1.02x10-4 m H2O = 9.869x10-6 atm = 1.45x10-4 psi (lbf/in2)
- T(oF) = [T(oC)](9/5) + 32
Note: Due to possible conversion of carbon to graphite (graphitization) - carbon steel pipes should be avoided for temperatures above 425oC. Instead Alloy steel should be used.
Other Useful Info
From 2.875-inch to 26-inch OD and from .375-inch to 4-inch wall thicknesses - and everything in between - Himesh Steel & Alloys got your heavy wall steel pipe and mechanical tubing needs covered.
Our Inventory
Also check our carbon steel inventory
Shipping Worldwide :
We import & export to:
