DIN FLANGE DIN 2527
Looking for DIN FLANGE DIN 2527 Blind Flange in specific standards & size at Factory Rate?
We are manufacturer of DIN FLANGE DIN 2527 Blind Flange and supply high quality DIN FLANGE DIN 2527 Blind Flange in both large and small quantities worldwide & offer you the best prices in the market.

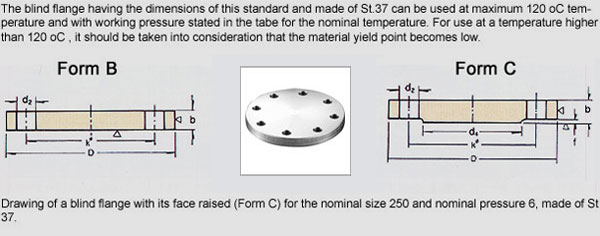

Blind Flange
Nominal Pressure 6 to 40
Scope of Application
(Dimensions in mm)
| Nominal Pressure 6 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Flange | Raised Face | Drilling | Approx. Weight (7.85 kg/dm3) for |
||||||||||||
| D | b | k | d4 | f | Number of Holes |
Bolt Diameter | d2 | Form B kg | Form C kg | |||||||
| 10 15 20 |
75 80 90 |
12 12 14 |
50 55 65 |
35 40 50 |
2 2 2 |
4 4 4 |
M10 M10 M10 |
- - - |
11.5 11.5 11.5 |
0.38 0.44 0.65 |
0.33 0.38 0.59 |
|||||
| 25 32 40 |
100 120 130 |
14 14 14 |
75 90 100 |
60 70 80 |
2 2 3 |
4 4 4 |
M10 M12 M12 |
- (1/2") (1/2") |
11.5 14 14 |
0.82 1.17 1.39 |
0.74 1.07 1.21 |
|||||
| 50 65 80 |
140 160 190 |
14 14 16 |
110 130 150 |
90 110 128 |
3 3 3 |
4 4 4 |
M12 M12 M16 |
(1/2") (1/2") (5/8") |
14 14 18 |
1.62 2.44 3.43 |
1.43 2.21 3.09 |
|||||
| 100 125 150 |
210 240 265 |
16 18 18 |
170 200 225 |
148 178 202 |
3 3 3 |
4 8 8 |
M16 M16 M16 |
(5/8") (5/8") (5/8") |
18 18 18 |
4.76 6.11 7.51 |
4.37 5.68 7.02 |
|||||
| (175) 200 250 |
295 320 375 |
20 20 22 |
255 280 335 |
232 258 312 |
3 3 3 |
8 8 12 |
M16 M16 M16 |
(5/8") (5/8") (5/8") |
18 18 18 |
10.4 12.3 18.3 |
9.85 11.7 17.6 |
|||||
| 300 350 400 |
440 490 540 |
22 22 22 |
395 445 495 |
365 415 465 |
4 4 4 |
12 12 16 |
M20 M20 M20 |
(3/4") (3/4") (3/4") |
23 23 23 |
25.3 31.6 38.4 |
24.0 30.1 36.4 |
|||||
| 500 | 645 | 24 | 600 | 570 | 4 | 20 | M20 | (3/4") | 23 | 60.4 | 58.1 | |||||
| Nominal Pressure 10 | ||||||||||||||||
| 200 250 300 |
340 395 445 |
24 26 26 |
295 350 400 |
268 320 370 |
3 3 4 |
8 12 12 |
M20 M20 M20 |
(3/4") (3/4") (3/4") |
23 23 23 |
16.5 24.0 30.9 |
15.6 23.1 29.4 |
|||||
| 350 400 500 |
505 565 670 |
26 26 28 |
460 515 620 |
430 482 585 |
4 4 4 |
16 16 20 |
M20 M24 M24 |
(3/4") (7/8") (7/8") |
23 27 27 |
40.6 49.4 75.0 |
38.0 47.5 72.7 |
|||||
| Nominal Pressure 16 *) 4 bolts for nominal pressure 10, DIN 2527 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Flange | Raised Face | Drilling | Approx. Weight (7.85 kg/dm3) for |
|||||||
| D | b | k | d4 | f | Number of Holes |
Bolt Diameter | d2 | Form B kg | Form C kg | ||
| 10 15 20 |
90 95 105 |
14 14 16 |
60 65 75 |
40 45 58 |
2 2 2 |
4 4 4 |
M12 M12 M12 |
(1/2") (1/2") (1/2") |
14 14 14 |
0.63 0.72 1.01 |
0.56 0.64 0.93 |
| 25 32 40 |
115 140 150 |
16 16 16 |
85 100 110 |
68 78 88 |
2 2 3 |
4 4 4 |
M12 M16 M16 |
(1/2") (5/8") (5/8") |
14 18 18 |
1.23 1.80 2.09 |
1.13 1.66 1.85 |
| 50 65 80 |
165 185 200 |
18 18 20 |
125 145 160 |
102 122 138 |
3 3 3 |
4 4 4/8* |
M16 M16 M16 |
(5/8") (5/8") (5/8") |
18 18 18 |
2.88 3.66 4.77 |
2.59 3.33 4.34 |
| 100 125 150 |
220 250 285 |
20 22 22 |
180 210 240 |
158 188 212 |
3 3 3 |
8 8 8 |
M16 M16 M20 |
(5/8") (5/8") (3/4") |
18 18 23 |
5.65 8.42 10.4 |
5.26 7.67 9.85 |
| (175) 200 250 |
315 340 405 |
24 24 26 |
270 295 355 |
242 268 320 |
3 3 3 |
8 12 12 |
M20 M20 M24 |
(3/4") (3/4") (7/8") |
23 23 27 |
14.0 16.1 24.9 |
13.5 15.6 23.9 |
| 300 350 400 |
460 520 580 |
28 30 32 |
410 470 525 |
378 438 490 |
4 4 4 |
12 16 16 |
M24 M24 M27 |
(7/8") (7/8") (1") |
27 27 30 |
35.1 47.8 63.5 |
33.6 46.2 61.5 |
| 500 | 715 | 34 | 650 | 610 | 4 | 20 | M30 | (1 1/8") | 33 | 102 | 99.5 |
| Nominal Pressure 25 For nominal size 10-150, refer to nominal pressure 40. | |||||||||||
| (175) 200 250 |
330 360 425 |
28 30 32 |
280 310 370 |
248 278 335 |
3 3 3 |
12 12 12 |
M24 M24 M27 |
(7/8") (7/8") (1") |
27 27 30 |
17.3 22.3 33.5 |
16.5 21.5 32.5 |
| 300 350 400 |
485 555 620 |
34 38 40 |
430 490 550 |
395 450 505 |
4 4 4 |
16 16 16 |
M27 M30 M33 |
(1") (1 1/8") (1 1/4") |
30 33 36 |
46.3 68.0 89.7 |
44.7 65.9 87.0 |
| 500 | 730 | 44 | 660 | 615 | 4 | 20 | M33 | (1 1/4") | 36 | 138 | 134 |
| Nominal Pressure 40 | |||||||||||
| 10 15 20 |
90 95 105 |
16 16 16 |
60 65 75 |
40 45 58 |
2 2 2 |
4 4 4 |
M12 M12 M12 |
(1/2") (1/2") (1/2") |
14 14 14 |
0.72 0.81 1.24 |
0.62 0.74 1.05 |
| 25 32 40 |
115 140 150 |
18 18 18 |
85 100 115 |
68 78 88 |
2 2 3 |
4 4 4 |
M12 M16 M16 |
(1/2") (5/8") (5/8") |
14 18 18 |
1.38 2.03 2.35 |
1.31 1.82 2.11 |
| 50 65 80 |
165 185 200 |
20 22 24 |
125 145 160 |
102 122 138 |
3 3 3 |
4 8 8 |
M16 M16 M16 |
(5/8") (5/8") (5/8") |
18 18 18 |
3.20 4.29 5.88 |
2.91 4.13 5.21 |
| 100 125 150 |
235 270 300 |
24 26 28 |
190 220 250 |
162 188 218 |
3 3 3 |
8 8 8 |
M20 M24 M24 |
(3/4") (7/8") (7/8") |
23 27 27 |
7.54 10.8 14.5 |
7.08 10.4 13.9 |
| (175) 200 250 |
350 375 450 |
32 34 38 |
295 320 385 |
260 285 345 |
3 3 3 |
12 12 12 |
M27 M27 M30 |
(1") (1") (1 1/8") |
30 30 33 |
22.1 27.2 43.8 |
21.3 26.2 43.1 |
| 300 350 400 |
515 580 660 |
42 46 50 |
450 510 585 |
410 465 535 |
4 4 4 |
16 16 16 |
M30 M33 M36 |
(1 1/8") (1 1/4") (1 3/8") |
33 36 39 |
63.3 89.5 127 |
62.2 87.2 124 |
| 500 | 755 | 52 | 670 | 615 | 4 | 20 | M39 | (1 1/2") | 42 | 172 | 168 |
Nominal size in parentheses should preferably be avoided. Screw thread size in parentheses shall not be used for new construction.
Material: St 37 of DIN 17100 (For other material, please specify in the order sheet).
St 37-2 for 12 °C to 300 °C temperature; Heat-treated steel for temperature over 300 °C,
e.g., C22N or alloyed steel as mentioned for pipes of DIN 17175.
