DIN FLANGE DIN 2632
Looking for DIN FLANGE DIN 2632 Welding Neck Flange in specific standards & size at Factory Rate?
We are manufacturer of DIN FLANGE DIN 2632 Welding Neck Flange and supply high quality DIN FLANGE DIN 2632 Welding Neck Flange in both large and small quantities worldwide & offer you the best prices in the market.

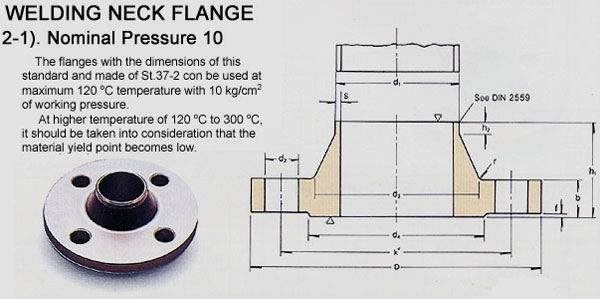

(Dimensions in mm)
| Nominal Pressure 10 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe | Flange | Neck | Raised Face | Drilling | Approx. Weight (7.85 kg/dm3) kg |
|||||||||||
| Nominal Size |
d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Number of Holes |
Bolt Diameter |
d2 | ||
| 200 | 216 219.1*) |
340 | 24 | 295 | 62 | 232 235 |
5.9 | 10 | 16 | 268 | 3 | 8 | M20 | (3/4") | 23 | 11.3 |
| 250 | 267 273*) |
395 | 26 | 350 | 68 | 285 292 |
6.3 | 12 | 16 | 320 | 3 | 12 | M20 | (3/4") | 23 | 14.7 |
| 300 | 318 323.9*) |
445 | 26 | 400 | 68 | 335 344 |
7.1 | 12 | 16 | 370 | 4 | 12 | M20 | (3/4") | 23 | 17.6 |
| 350 | 368 355.6*) |
505 | 26 | 460 | 68 | 385 | 7.1 | 12 | 16 | 430 | 4 | 16 | M20 | (3/4") | 23 | 21.4 |
| 400 | 419 406.4*) |
565 | 26 | 515 | 72 | 440 | 7.1 | 12 | 16 | 482 | 4 | 16 | M24 | (7/8") | 27 | 26.1 |
| 500 | 521 508*) |
670 | 28 | 620 | 75 | 542 | 7.1 | 12 | 16 | 585 | 4 | 20 | M24 | (7/8") | 27 | 34.7 |
| 600 | 622 609.6*) |
780 | 28 | 725 | 80 | 642 | 7.1 | 12 | 18 | 685 | 5 | 20 | M27 | (1") | 30 | 42.2 |
| 700 | 720 711.2*) |
895 | 30 | 840 | 80 | 745 | 8 | 12 | 18 | 800 | 5 | 24 | M27 | (1") | 30 | 58.7 |
| 800 | 820 812.8*) |
1015 | 32 | 950 | 90 | 850 | 8 | 12 | 18 | 905 | 5 | 24 | M30 | (1 1/8") | 33 | 80.0 |
| 900 | 920 914.4*) |
1115 | 34 | 1050 | 95 | 950 | 10 | 12 | 20 | 1005 | 5 | 28 | M30 | (1 1/8") | 33 | 95.6 |
*) Outer dimameter of pipe corresponds to ISO recommendation R64.
Material (to be specified by orderer):
St. 37-2 by DIN 17100 for temperature 300 °C
Weldable heat-treated steel for temperature > 300 °C.
Process: Machining the outside diameter, bore, gasket
surface, bevel end for welding, and bolt holes.

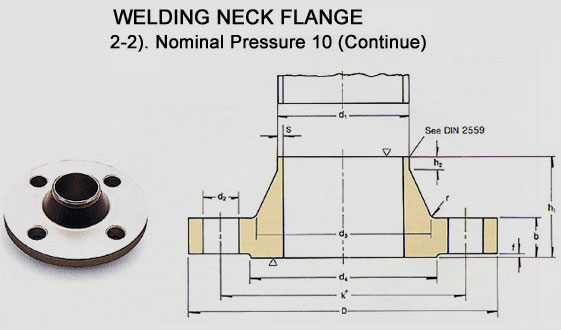

(Dimensions in mm)
| Nominal Pressure 10 (Continue) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe | Flange | Neck | Raised Face | Drilling | Approx. Weight (7.85 kg/dm3) kg |
|||||||||||
| Nominal Size |
d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Number of Holes |
Bolt Diameter |
d2 | ||
| 1000 | 1020 1016*) |
1230 | 34 | 1160 | 95 | 1052 | 10 | 16 | 20 | 1110 | 5 | 28 | M33 | (1 1/") | 36 | 114 |
| 1200 | 1220 | 1455 | 38 | 1380 | 115 | 1255 | 11 | 16 | 25 | 1330 | 5 | 32 | M36 | (1 3/8") | 39 | 182 |
| 1400 | 1420 | 1675 | 42 | 1590 | 120 | 1460 | 12 | 16 | 25 | 1535 | 5 | 36 | M39 | (1 1/2") | 42 | 248 |
| 1600 | 1620 | 1915 | 46 | 1820 | 130 | 1665 | 14 | 16 | 25 | 1760 | 5 | 40 | M45 | (1 3/4") | 48 | 347 |
| 1800 | 1820 | 2115 | 50 | 2020 | 140 | 1868 | 15 | 16 | 30 | 1960 | 5 | 44 | M45 | (1 3/4") | 48 | 430 |
| 2000 | 2020 | 2325 | 54 | 2230 | 150 | 2072 | 16 | 16 | 30 | 2170 | 5 | 48 | M45 | (1 3/4") | 48 | 539 |
| 2200 | 2220 | 2550 | 58 | 2440 | 160 | 2275 | 18 | 18 | 35 | 2370 | 6 | 52 | M52 | (2") | 56 | 658 |
| 2400 | 2420 | 2760 | 62 | 2650 | 170 | 2478 | 20 | 18 | 35 | 2570 | 6 | 56 | M52 | (2") | 56 | 825 |
| 2600 | 2620 | 2960 | 66 | 2850 | 180 | 2680 | 22 | 18 | 40 | 2780 | 6 | 60 | M52 | (2") | 56 | 979 |
| 2800 | 2820 | 3180 | 70 | 3070 | 190 | 2882 | 22 | 18 | 40 | 3000 | 6 | 64 | M52 | (2") | 56 | 1156 |
| 3000 | 3020 | 3405 | 74 | 3290 | 200 | 3085 | 24 | 18 | 45 | 3210 | 6 | 68 | M56 | (2 1/4") | 62 | 1402 |
*) Outer dimameter of pipe corresponds to ISO recommendation R64.
Material (to be specified by orderer):
St. 37-2 by DIN 17100 for temperature 300 °C
Weldable heat-treated steel for temperature > 300 °C.
Process: Machining the outside diameter, bore, gasket
surface, bevel end for welding, and bolt holes.
