DIN FLANGE DIN 2576
Looking for DIN FLANGE DIN 2576 Plate Flange in specific standards & size at Factory Rate?
We are manufacturer of DIN FLANGE DIN 2576 Plate Flange and supply high quality DIN FLANGE DIN 2576 Plate Flange in both large and small quantities worldwide & offer you the best prices in the market.

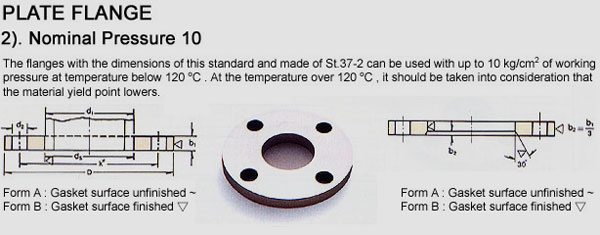

(Dimensions in mm)
| Pipe | Flange | Drilling | Approx. Weight (7.85 kg/dm3) kg |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size |
d1 | d5 | D | b1) | k | Number of Holes |
Bolt Diameter | d2 | ||
| 10 | 14 17.2*) |
14.5 17.7 |
90 | 14 | 60 | 4 | M12 | (1/2") | 14 | 0.613 0.605 |
| 15 | 20 21.3*) |
20.5 21.8 |
95 | 14 | 65 | 4 | M12 | (1/2") | 14 | 0.675 0.669 |
| 20 | 25 26.9*) |
25.5 27.4 |
105 | 16 | 75 | 4 | M12 | (1/2") | 14 | 0.947 0.936 |
| 25 | 30 33.7* |
30.5 34.2 |
115 | 16 | 85 | 4 | M12 | (1/2") | 14 | 1.14 1.11 |
| 32 | 38 42.4*) |
38.5 42.9 |
140 | 16 | 100 | 4 | M16 | (5/8") | 18 | 1.66 1.62 |
| 40 | 44.5 48.3*) |
45 48.8 |
150 | 16 | 110 | 4 | M16 | (5/8") | 18 | 1.89 1.86 |
| 50 | 57 60.3*) |
57.5 60.8 |
165 | 18 | 125 | 4 | M16 | (5/8") | 18 | 2.51 2.47 |
| 65 | 76.1*) | 76.6 | 185 | 18 | 145 | 4 | M16 | (5/8") | 18 | 3.00 |
| 80 | 88.9*) | 89.4 | 200 | 20 | 160 | 4 | M16 | (5/8") | 18 | 3.79 |
| 100 | 108 114.3*) |
108.5 114.8 |
220 | 20 | 180 | 8 | M16 | (5/8") | 18 | 4.20 4.03 |
| 125 | 133 139.7*) |
133.5 140.2 |
250 | 22 | 210 | 8 | M16 | (5/8") | 18 | 5.71 5.46 |
| 150 | 159 168.3*) |
159.5 168.8 |
285 | 22 | 240 | 8 | M20 | (3/4") | 23 | 6.72 6.57 |
| (175) | 191 193.7*) |
192 194.7 |
315 | 24 | 270 | 8 | M20 | (3/4") | 23 | 8.60 8.45 |
| 200 | 216 219.1*) |
217 220.1 |
340 | 24 | 295 | 8 | M20 | (3/4") | 23 | 9.50 9.31 |
| 250 | 318 323.9*) |
268 274 |
395 | 26 | 350 | 12 | M20 | (3/4") | 23 | 12.5 11.9 |
| 300 | 318 323.9*) |
319 324.9 |
445 | 26 | 400 | 12 | M20 | (3/4") | 23 | 14.4 13.8 |
| 350 | 355.6*) 368 |
356.6 369 |
505 | 28 | 460 | 16 | M20 | (3/4") | 23 | 20.6 19.0 |
| 400 | 406.4*) 419 |
407.4 420 |
565 | 32 | 515 | 16 | M24 | (7/8") | 27 | 27.9 25.9 |
| 500 | 508*) 521 |
509 522 |
670 | 38 | 620 | 20 | M24 | (7/8") | 27 | 41.1 37.9 |
*) Outside diameter of pipe corresponds to ISO recommendation R64.
Nominal size in parentheses should preferably be avoided.
1) By finishing the face, plate thickness b1 is reduced by 1-1.5mm.
Material: St.37-2, DIN 17100
Process: Machining the outside diameter, bore, and bolt holes.
A: Gasket suface unfinished
B: Gasket surface finished
[ For shipbuilders ]
Machining the outside diameter, bore; and bolt
holes; and chamfering the bore edge.
AS: Gasket surface unfinished
BS: Gasket surface finished
