DIN FLANGE DIN 2573
Looking for DIN FLANGE DIN 2573 Plate Flange in specific standards & size at Factory Rate?
We are manufacturer of DIN FLANGE DIN 2573 Plate Flange and supply high quality DIN FLANGE DIN 2573 Plate Flange in both large and small quantities worldwide & offer you the best prices in the market.

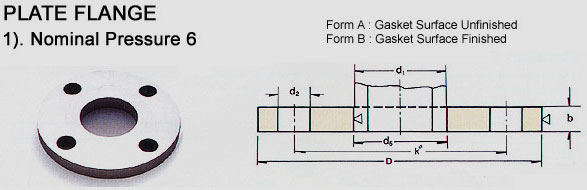

(Dimensions in mm)
| Pipe | Flange | Drilling | Approx. Weight (7.85 kg/dm3) kg |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size |
d1 | d5 | D | b1) | k | Number of Holes |
Bolt Diameter | d2 | ||
| 10 | 14 17.2*) |
14.5 17.7 |
75 | 12 | 50 | 4 | M10 | - | 11.5 | 0.363 |
| 15 | 20 21.3*) |
20.5 21.8 |
80 | 12 | 55 | 4 | M10 | - | 11.5 | 0.41 |
| 20 | 25 26.9*) |
2535 27.4 |
90 | 14 | 65 | 4 | M10 | - | 11.5 | 0.60 |
| 25 | 30 33.7*) |
30.5 34.2 |
100 | 14 | 75 | 4 | M10 | - | 11.5 | 0.74 |
| 32 | 38 42.4*) |
38.5 42.9 |
120 | 16 | 90 | 4 | M12 | (1/2") | 14 | 1.19 |
| 40 | 44.5 48.3*) |
45 48.8 |
130 | 16 | 100 | 4 | M12 | (1/2") | 14 | 1.39 |
| 50 | 57 60.3*) |
57.5 60.8 |
140 | 16 | 110 | 4 | M12 | (1/2") | 14 | 1.53 |
| 65 | 76.1*) | 76.6 | 160 | 16 | 130 | 4 | M12 | (1/2") | 14 | 1.89 |
| 80 | 88.9*) | 89.4 | 190 | 18 | 150 | 4 | M16 | (5/8") | 18 | 2.98 |
| 100 | 108 114.3*) |
108.5 114.8 |
210 | 18 | 170 | 4 | M16 | (5/8") | 18 | 3.46 |
| 125 | 133 139.7*) |
133.5 140.2 |
240 | 20 | 200 | 8 | M16 | (5/8") | 18 | 4.60 |
| 150 | 159 168.3*) |
159.5 168.8 |
265 | 20 | 225 | 8 | M16 | (5/8") | 18 | 5.22 |
| 200 | 216 219.1*) |
217 220.1 |
320 | 22 | 280 | 8 | M16 | (5/8") | 18 | 7.15 |
| 250 | 267 273*) |
268 274 |
375 | 24 | 335 | 12 | M16 | (5/8") | 18 | 9.61 |
| 300 | 318 323.9*) |
319 324.9 |
440 | 24 | 395 | 12 | M20 | (3/4") | 23 | 12.6 |
| 350 | 355.6*) 368 |
356.6 369 |
490 | 26 | 445 | 12 | M20 | (3/4") | 23 | 15.6 |
| 400 | 406.4*) 419 |
407.4 420 |
540 | 28 | 495 | 16 | M20 | (3/4") | 23 | 18.4 |
| 500 | 508*) 521 |
509 522 |
645 | 30 | 600 | 20 | M20 | (3/4") | 23 | 24.6 |
*) Outside diameter of pipe corresponds to ISO recommendation R64.
1) By finishing the face, plater thickness "b" will be reduced by 1-1.5mm.
Material: St.37-2, DIN 17100
Process: Machining the outside diameter, bore, and bolt holes.
A: Face unfinished
B: Face finished
EXAMPLE OF FIXING METHOD
