DIN FLANGE DIN 2636
Looking for DIN FLANGE DIN 2636 Welding Neck Flange in specific standards & size at Factory Rate?
We are manufacturer of DIN FLANGE DIN 2636 Welding Neck Flange and supply high quality DIN FLANGE DIN 2636 Welding Neck Flange in both large and small quantities worldwide & offer you the best prices in the market.

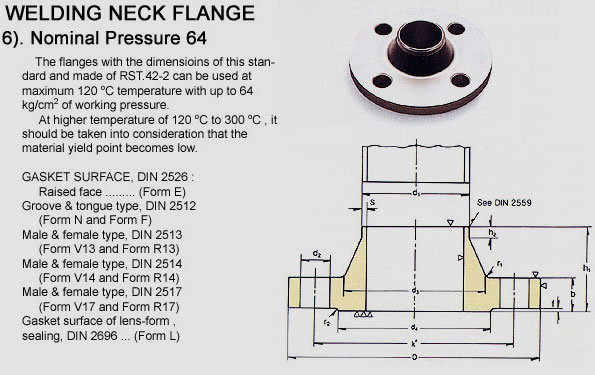

(Dimensions in mm)
| Nominal Pressure 64 | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe | Flange | Neck | Raised Face | Drilling | Approx. Weight (7.85 kg/dm3) kg |
||||||||||||
| Nominal Size |
d1 | D | b | k | h1 | d3 | s | r1 | h2 | d4 | f | r2 | Number of Holes |
Bolt Diameter |
d2 | ||
| 50 | 57 60.3*) |
180 | 26 | 135 | 62 | 78 82 |
2.9 | 6 | 10 | 95 | 3 | 1.5 | 4 | M20 | (3/4") | 23 | 4.55 |
| 65 | 76.1*) | 205 | 26 | 160 | 68 | 98 | 3.2 | 6 | 12 | 120 | 3 | 1.5 | 8 | M20 | (3/4") | 23 | 5.73 |
| 80 | 88.9*) | 215 | 28 | 170 | 72 | 112 | 3.6 | 8 | 12 | 130 | 3 | 1.5 | 8 | M20 | (3/4") | 23 | 6.69 |
| 100 | 108 114.3*) |
250 | 30 | 200 | 78 | 132 138 |
4 | 8 | 12 | 160 | 3 | 1.5 | 8 | M24 | (7/8") | 27 | 9.66 |
| 125 | 133 139.7*) |
295 | 34 | 240 | 88 | 162 168 |
4.5 | 8 | 12 | 185 | 3 | 1.5 | 8 | M27 | (1") | 30 | 15.1 |
| 150 | 159 168.3*) |
345 | 36 | 280 | 95 | 192 202 |
5.6 | 10 | 12 | 215 | 3 | 1.5 | 8 | M30 | (1 1/8") | 33 | 21.9 |
| (175) | (191) 193.7*) |
375 | 40 | 310 | 105 | 225 228 |
6.3 | 10 | 16 | 245 | 3 | 1.5 | 12 | M30 | (1 1/8") | 33 | 23.7 |
| 200 | 216 219.1*) |
415 | 42 | 340 | 110 | 252 256 |
7.1 | 10 | 16 | 270 | 3 | 1.5 | 12 | M33 | (1 1/4") | 36 | 34.9 |
| 250 | 267 273*) |
470 | 46 | 400 | 125 | 310 316 |
8.8 | 12 | 18 | 325 | 3 | 1.5 | 12 | M33 | (1 1/4") | 36 | 49.6 |
| 300 | 318 323.9*) |
530 | 52 | 460 | 140 | 365 372 |
11 | 12 | 18 | 375 | 4 | 1 | 16 | M33 | (1 1/4") | 36 | 68.7 |
| 350 | 368 355.6*) |
600 | 56 | 525 | 150 | 420 | 12.5 | 12 | 20 | 435 | 4 | 2 | 16 | M36 | (1 3/8") | 39 | 94.6 |
| 400 | 419 406.4*) |
670 | 60 | 585 | 160 | 475 | 14.2 | 12 | 20 | 485 | 4 | 2 | 16 | M39 | (1 1/2") | 42 | 124 |
Refer to DIN 2637 for nominal size 10-40.
*) Outer dimameter of pipe corresponds to ISO recommendation R64.
Material (to be specified by orderer):
RSt. 42-2 by DIN 17100 for temperature 300 °C
Weldable heat-treated steel for temperature > 300 °C.
Process: Machining the outside diameter, bore, gasket
surface, bevel end for welding, and bolt holes.
Marking: Every flange is marked with the following data
at the outside diameter:
Company mark, nominal size, nominal pressure, and material.
