DIN FLANGE DIN 2635 Welding Neck Flange
Looking for DIN FLANGE DIN 2635 Welding Neck Flange in specific standards & size at Factory Rate?
We are manufacturer of DIN FLANGE DIN 2635 Welding Neck Flange and supply high quality DIN FLANGE DIN 2635 Welding Neck Flange in both large and small quantities worldwide & offer you the best prices in the market.

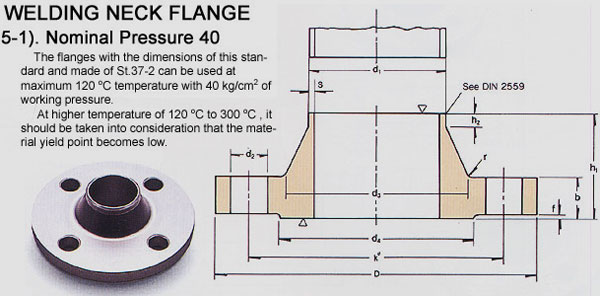

(Dimensions in mm)
| Nominal Pressure 40 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe | Flange | Neck | Raised Face | Drilling | Approx. Weight (7.85 kg/dm3) kg |
|||||||||||
| Nominal Size |
d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Number of Holes |
Bolt Diameter |
d2 | ||
| 10 | 14 17.2*) |
90 | 16 | 60 | 35 | 25 28 |
1.8 | 4 | 6 | 40 | 2 | 4 | M12 | (1/2") | 14 | 0.661 |
| 15 | 20 21.3*) |
95 | 16 | 65 | 38 | 30 32 |
2 | 4 | 6 | 45 | 2 | 4 | M12 | (1/2") | 14 | 0.746 |
| 20 | 25 26.9*) |
105 | 18 | 75 | 40 | 38 40 |
2.3 | 4 | 6 | 58 | 2 | 4 | M12 | (1/2") | 14 | 1.06 |
| 25 | 30 33.7*) |
115 | 18 | 85 | 40 | 42 46 |
2.6 | 4 | 6 | 68 | 2 | 4 | M12 | (1/2") | 14 | 1.29 |
| 32 | 38 42.4*) |
140 | 18 | 100 | 42 | 52 56 |
2.6 | 6 | 6 | 78 | 2 | 4 | M16 | (5/8") | 18 | 1.88 |
| 40 | 44.5 48.3*) |
150 | 18 | 110 | 45 | 60 64 |
2.6 | 6 | 7 | 88 | 3 | 4 | M16 | (5/8") | 18 | 2.33 |
| 50 | 57 60.3*) |
165 | 20 | 125 | 48 | 72 75 |
2.9 | 6 | 8 | 102 | 3 | 4 | M16 | (5/8") | 18 | 2.82 |
| 65 | 76.1*) | 185 | 22 | 145 | 52 | 90 | 2.9 | 6 | 10 | 122 | 3 | 8 | M16 | (5/8") | 18 | 3.74 |
| 80 | 88.9*) | 200 | 24 | 160 | 58 | 105 | 3.2 | 8 | 12 | 138 | 3 | 8 | M16 | (5/8") | 18 | 4.75 |
| 100 | 108 114.3*) |
235 | 24 | 190 | 65 | 128 134 |
3.6 | 8 | 12 | 162 | 3 | 8 | M20 | (3/4") | 23 | 6.52 |
Size in parentheses should preferably be avoided.
*) Outer dimameter of pipe corresponds to ISO recommendation R64.
Material (to be specified by orderer):
St. 37-2 by DIN 17100 for temperature 300 °C
Weldable heat-treated steel for temperature > 300 °C.
Process: Machining the outside diameter, bore, gasket surface, bevel end for welding, and bolt holes.

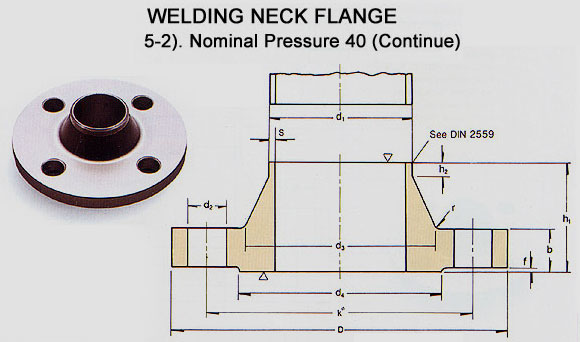

(Dimensions in mm)
| Nominal Pressure 40 (Continue) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe | Flange | Neck | Raised Face | Drilling | Approx. Weight (7.85 kg/dm3) kg |
|||||||||||
| Nominal Size |
d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Number of Holes |
Bolt Diameter |
d2 | ||
| 125 | 133 139.7*) |
270 | 26 | 220 | 68 | 155 162 |
4 | 8 | 12 | 188 | 3 | 8 | M24 | (7/8") | 27 | 9.07 |
| 150 | 159 168.3*) |
300 | 28 | 250 | 75 | 182 192 |
4.5 | 10 | 12 | 218 | 3 | 8 | M24 | (7/8") | 27 | 11.8 |
| (175) | (191) 193.7*) |
350 | 32 | 295 | 82 | 215 218 |
5.6 | 10 | 15 | 260 | 3 | 12 | M27 | (1") | 30 | 18.2 |
| 200 | 216 219.1*) |
375 | 34 | 320 | 88 | 240 244 |
6.3 | 10 | 16 | 285 | 3 | 12 | M27 | (1") | 30 | 21.5 |
| 250 | 267 273*) |
450 | 38 | 385 | 105 | 298 306 |
7.1 | 12 | 18 | 345 | 3 | 12 | M30 | (1 1/2") | 33 | 34.9 |
| 300 | 318 323.9*) |
515 | 42 | 450 | 115 | 352 362 |
8 | 12 | 18 | 410 | 4 | 16 | M30 | (1 1/8") | 33 | 49.7 |
| 350 | 368 355.6*) |
580 | 46 | 510 | 125 | 408 | 8.8 | 12 | 20 | 460 | 4 | 16 | M33 | (1 1/4") | 36 | 68.1 |
| 400 | 419 406.4*) |
660 | 50 | 585 | 135 | 462 | 11 | 12 | 20 | 535 | 4 | 16 | M36 | (1 3/8") | 39 | 96.5 |
| 500 | 521 508*) |
755 | 52 | 670 | 140 | 562 | 14.2 | 12 | 20 | 615 | 4 | 20 | M39 | (1 1/2") | 42 | 117 |
Size in parentheses should preferably be avoided.
*) Outer dimameter of pipe corresponds to ISO recommendation R64.
Material (to be specified by orderer):
St. 37-2 by DIN 17100 for temperature 300 °C
Weldable heat-treated steel for temperature > 300 °C.
Process: Machining the outside diameter, bore, gasket surface, bevel end for welding, and bolt holes.
