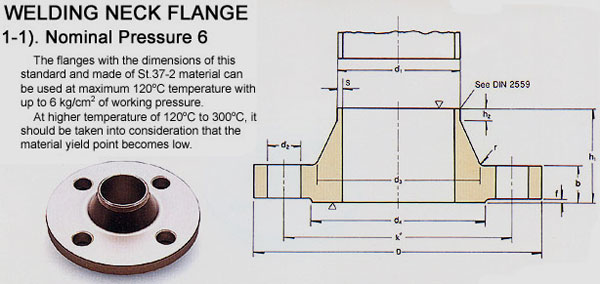

DIN FLANGE DIN 2631 Welding Neck Flange
Looking for DIN FLANGE DIN 2631 Welding Neck Flange in specific standards & size at Factory Rate?
We are manufacturer of DIN FLANGE DIN 2631 Welding Neck Flange and supply high quality DIN FLANGE DIN 2631 Welding Neck Flange in both large and small quantities worldwide & offer you the best prices in the market.
(Dimensions in mm)
| Nominal Pressure 6 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe | Flange | Neck | Raised Face | Drilling | Approx. Weight (7.85 kg/dm3) kg |
|||||||||||
| Nominal Size |
d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Number of Holes |
Bolt Diameter |
d2 | ||
| 10 | 14 17.2*) |
75 | 12 | 50 | 28 | 22 26 |
1.8 | 4 | 6 | 35 | 2 | 4 | M10 | - | 11.5 | 0.335 |
| 15 | 20 21.3*) |
80 | 12 | 55 | 30 | 28 30 |
2 | 4 | 6 | 40 | 2 | 4 | M10 | - | 11.5 | 0.392 |
| 20 | 25 26.9*) |
90 | 14 | 65 | 32 | 35 38 |
2.3 | 4 | 6 | 50 | 2 | 4 | M10 | - | 11.5 | 0.592 |
| 25 | 30 33.7*) |
100 | 14 | 75 | 35 | 40 42 |
2.6 | 4 | 6 | 60 | 2 | 4 | M10 | - | 11.5 | 0.747 |
| 32 | 38 42.4*) |
120 | 14 | 90 | 35 | 50 55 |
2.6 | 6 | 6 | 70 | 2 | 4 | M12 | (1/2") | 14 | 1.05 |
| 40 | 44.5 48.3*) |
130 | 14 | 100 | 38 | 58 62 |
2.6 | 6 | 7 | 80 | 3 | 4 | M12 | (1/2") | 14 | 1.18 |
| 50 | 57 60.3*) |
140 | 14 | 110 | 38 | 70 74 |
2.9 | 6 | 8 | 90 | 3 | 4 | M12 | (1/2") | 14 | 1.34 |
| 65 | 76.1*) | 160 | 14 | 130 | 38 | 88 | 2.9 | 6 | 9 | 110 | 3 | 4 | M12 | (1/2") | 14 | 1.67 |
| 80 | 88.9*) | 190 | 16 | 150 | 42 | 102 | 3.2 | 8 | 10 | 128 | 3 | 4 | M16 | (5/8") | 18 | 2.71 |
| 100 | 108 114.3*) |
210 | 16 | 170 | 45 | 122 130 |
3.6 | 8 | 10 | 148 | 3 | 4 | M16 | (5/8") | 18 | 3.24 |
| 125 | 133 139.7*) |
240 | 18 | 200 | 48 | 148 155 |
4 | 8 | 10 | 178 | 3 | 8 | M16 | (5/8") | 18 | 4.49 |
| 150 | 159 168.3*) |
265 | 18 | 225 | 48 | 172 184 |
4.5 | 10 | 12 | 202 | 3 | 8 | M16 | (5/8") | 18 | 5.15 |
| 200 | 216 219*) |
320 | 20 | 280 | 55 | 230 236 |
5.9 | 10 | 15 | 258 | 3 | 8 | M16 | (5/8") | 18 | 7.78 |
| 250 | 267 273*) |
375 | 22 | 335 | 60 | 282 290 |
6.3 | 12 | 15 | 312 | 3 | 12 | M16 | (5/8") | 18 | 10.8 |
| 300 | 318 323.9*) |
440 | 22 | 395 | 62 | 335 342 |
7.1 | 12 | 15 | 365 | 4 | 12 | M20 | (3/4") | 23 | 14.0 |
| 350 | 368 355.6*) |
490 | 22 | 445 | 62 | 385 | 7.1 | 12 | 15 | 415 | 4 | 12 | M20 | (3/4") | 23 | 16.1 |
*) Outer dimameter of pipe corresponds to ISO
recommendation R64.
Material (to be specified by orderer):
St. 37-2 by DIN 17100 for temperature 300 °C
Weldable heat-treated steel for temperature > 300 °C.
Process: Machining the outside diameter, bore, gasket
surface, bevel end for welding, and bolt holes.
