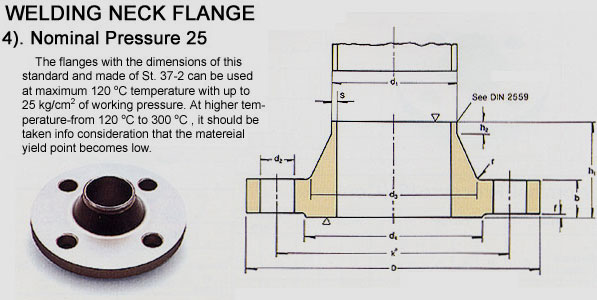

DIN FLANGE DIN 2634
Looking for DIN FLANGE DIN 2634 Welding Neck Flange in specific standards & size at Factory Rate?
We are manufacturer of DIN FLANGE DIN 2634 Welding Neck Flange and supply high quality DIN FLANGE DIN 2634 Welding Neck Flange in both large and small quantities worldwide & offer you the best prices in the market.
(Dimensions in mm)
| Nominal Pressure 25 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe | Flange | Neck | Raised Face | Drilling | Approx. Weight (7.85 kg/dm3) kg |
|||||||||||
| Nominal Size |
d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Number of Holes |
Bolt Diameter |
d2 | ||
| (175) | (191) 193.7*) |
330 | 28 | 280 | 75 | 215 218 |
5.6 | 10 | 15 | 248 | 3 | 12 | M24 | (7/8") | 27 | 13.4 |
| 200 | 216 219.1*) |
360 | 30 | 310 | 80 | 240 244 |
6.3 | 10 | 16 | 278 | 3 | 12 | M24 | (7/8") | 27 | 17.0 |
| 250 | 267 273*) |
425 | 32 | 370 | 88 | 292 298 |
7.1 | 12 | 18 | 335 | 3 | 12 | M27 | (1") | 30 | 24.4 |
| 300 | 318 323.9*) |
485 | 34 | 430 | 92 | 345 352 |
8 | 12 | 18 | 395 | 4 | 16 | M27 | (1") | 30 | 31.2 |
| 350 | 368 355.6*) |
555 | 38 | 490 | 100 | 398 | 8 | 12 | 20 | 450 | 4 | 16 | M30 | (1 1/8") | 33 | 45.0 |
| 400 | 419 406.4*) |
620 | 40 | 550 | 110 | 452 | 8.8 | 12 | 20 | 505 | 4 | 16 | M33 | (1 1/4") | 36 | 58.7 |
| 500 | 521 508*) |
730 | 44 | 660 | 125 | 558 | 10 | 12 | 20 | 615 | 4 | 20 | M33 | (1 1/4") | 36 | 86.1 |
| 600 | 622 609.6*) |
845 | 46 | 770 | 125 | 660 | 11 | 12 | 20 | 720 | 5 | 20 | M36 | (1 3/8") | 39 | 101 |
| 700 | 720 711.2*) |
960 | 46 | 875 | 125 | 760 | 12.5 | 12 | 20 | 820 | 5 | 24 | M39 | (1 1/2") | 42 | 134 |
| 800 | 820 812.8*) |
1085 | 50 | 990 | 135 | 865 | 14.2 | 12 | 22 | 930 | 5 | 24 | M45 | (1 3/4") | 48 | 183 |
| 900 | 920 914.4*) |
1185 | 54 | 1090 | 145 | 968 | 16 | 12 | 24 | 1030 | 5 | 28 | M45 | (1 3/4") | 48 | 232 |
| 1000 | 1020 1016*) |
1320 | 58 | 1210 | 155 | 1070 | 17.5 | 16 | 24 | 1140 | 5 | 28 | M52 | (2") | 56 | 302 |
Refet to DIN 2635 for nominal size 10-150.
Size in parentheses should preferably be avoided.
*) Outer dimameter of pipe corresponds to ISO recommendation R64.
Material (to be specified by orderer):
St. 37-2 by DIN 17100 for temperature 300 °C
Weldable heat-treated steel for temperature > 300 °C.
Process: Machining the outside diameter, bore, gasket surface, bevel end for welding, and bolt holes.
